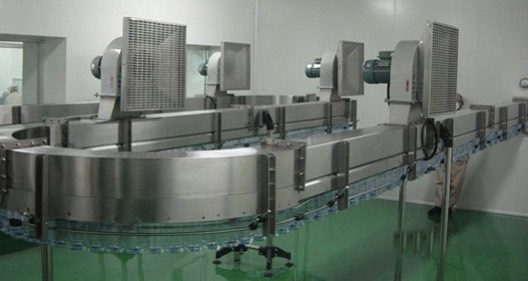

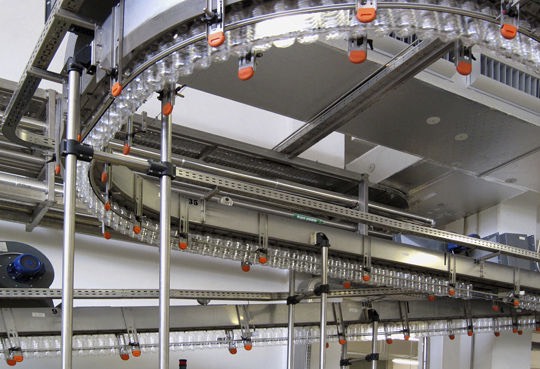

Air conveyor is a bridge between the unscrambler and 3 in 1 filling machine. Air conveyor is supported by the arm on the ground; the air blower is settled on the air conveyor. Each inlet of air conveyor has an air filter to prevent dust coming into. Two set of photoelectric switch settled in the bottle inlet of the air conveyor, which can control the unscrambler “slow-down”, “stop”, “speed-up”, and “start”. The bottle is transferred to 3 in 1 machine through wind.

Main character

1.Except support arm etc. which are made of plastic or rilsan material, other parts are made of SUS AISI304.

2.Air blower is settled with air filter to prevent dust coming into the bottle.

3.There is an adjustable joint settled in air conveyor. Do not have to adjust the height of unscrambler and air conveyor to meet the demand of different bottle, only adjust the height of bottle inlet.

4.There is a block bottle clear device driven by cylinder. When bottle block in the inlet, it clear the bottle automatic, this can avoid breaking the parts of unscrambler.

5.There is a photoelectric switch settled in the bottle inlet, when the bottle is detected, unscrambler stop. When the bottle leave the switch, unscrambler run again.
